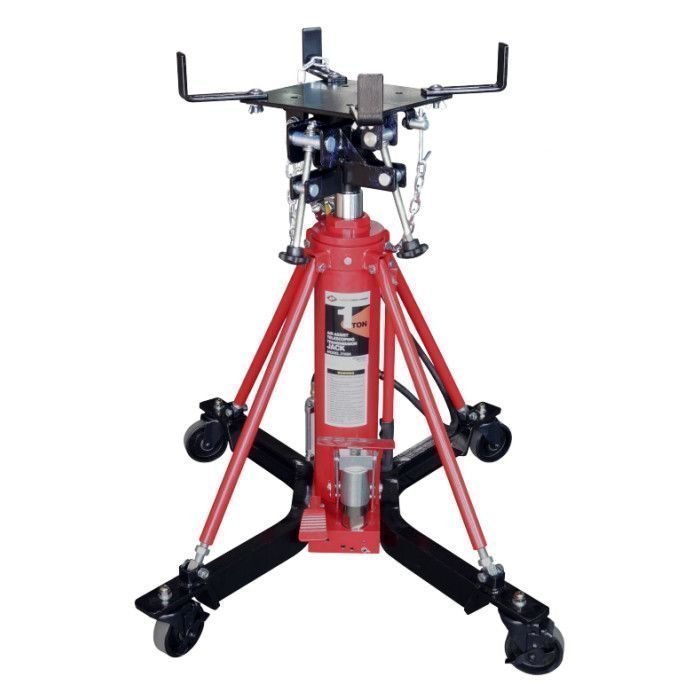

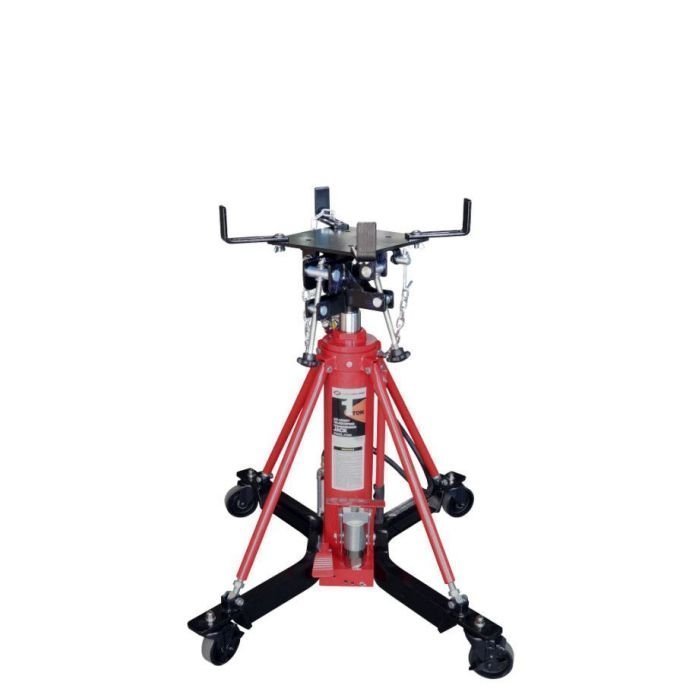

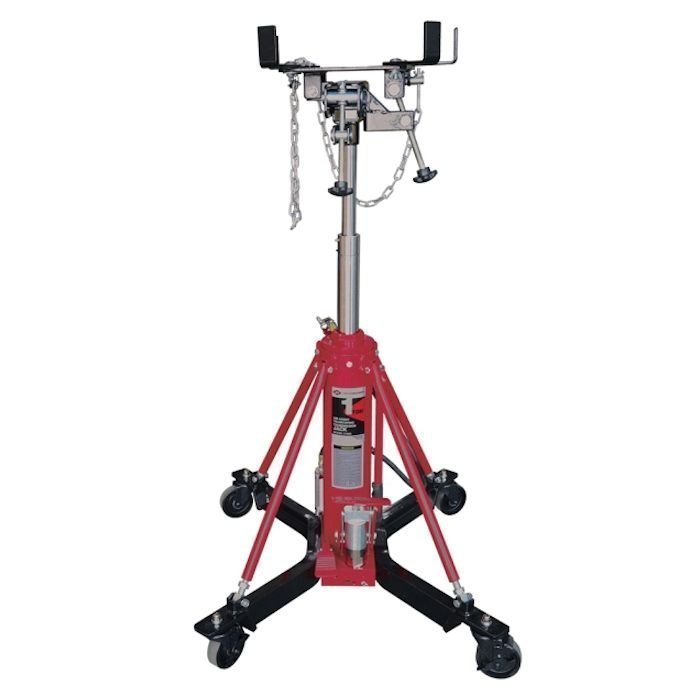

AFF Air Assist Transmission Jack 2,000 lbs. Capacity

American Forge & Foundry’s Transmission Jacks provide the service technician the capability for “one-man” removal and installation of bulk transmissions, differentials, transfer cases, fuel tanks, and more. AFF offers telescoping, low profile, and high lift styles in both manual hydraulic and air assist.

Features

• Two stage telescopic ram designed for medium duty truck transmissions, transfer cases, and differentials
• Double pump hydraulic system for quick lift operation
• Powder coat finish provides resistance to corrosion, chemicals, and scratches
• Chrome plated pump core and piston rod reduces friction and provides long service life
• Adjustable saddle with corner bracket and safety chain
• Optional Fuel Tank Adapter available. Includes safety straps and grounding cables.

Specifications

• Operation: Air Assist
• Capacity: 2,000 lbs.
• Ram Stages: 2
• Low Height: 37″
• High Height: 76″
• Front Tilt: 28°
• Rear Tilt: 49°
• Base Width: 28″ x 32″
• Weight: 183 lbs.
• Warranty: (1) Year Limited
