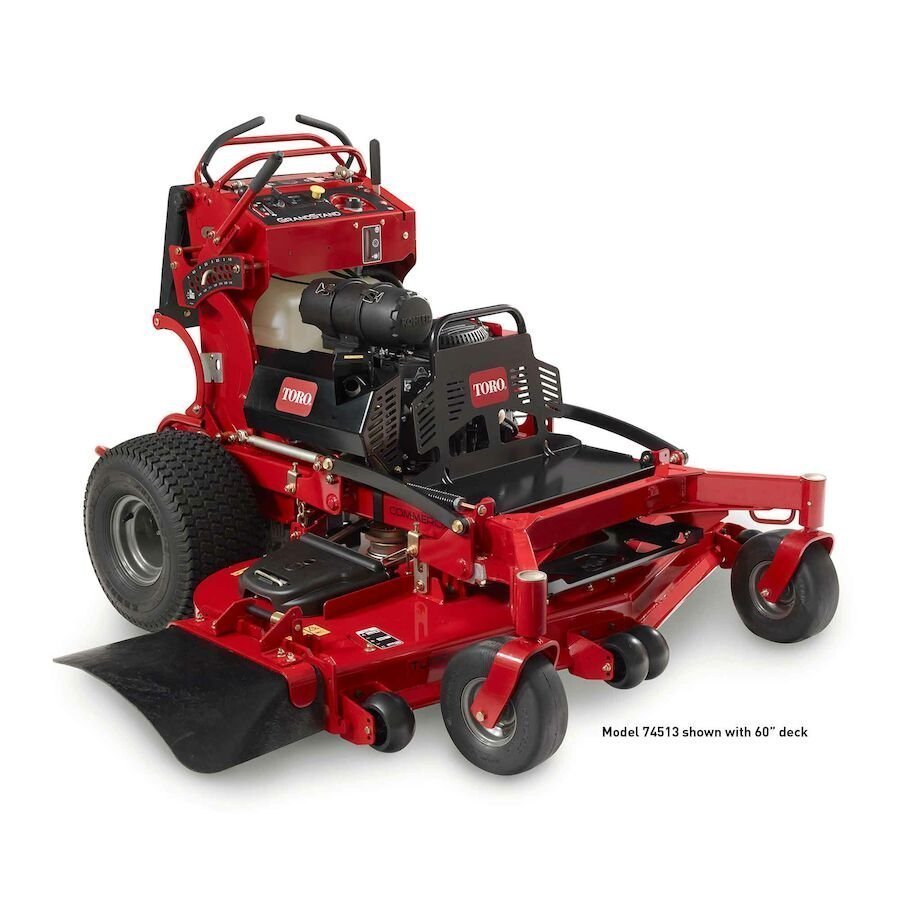

Toro GrandStand 72509 23.5hp Kawasaki FX Engine 60″ FAB Deck Mower (Local Pickup Only)
$7,549.00
12
People watching this product now!
Description
Toro GrandStand 72509 23.5hp Kawasaki FX Engine 60″ FAB Deck Mower (Local Pickup Only)
- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
- Foldable operator platform instantly converts the machine to a walk-behind.
- Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
- Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
- No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
- Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
- The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
- 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
- A wide stance and optimal balance enhance hillside stability and control.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specifications
| Adjustable Discharge Baffle | Standard, Tools-Free |
|---|---|
| Air Filter | Heavy-Duty Canister Air Cleaner |
| Anti Scalp Wheels | Standard |
| Blade Tip Speed | 18,500 ft/min / 5,638 m/min |
| Blades | 0.204 in. (0.5 cm) heat-treated steel |
| Box Dimensions | 90 in. x 70 in. x 52 in. / 228.6 cm x 117.8 cm x 132.1 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge) |
| Caster Tires | 11 in. x 4 in. – 5 in. (27.9 cm x 10.2 cm – 12.7 cm) Flat-Free Semi-Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Foldable Operator Platform with Suspension |
| Controls | Twin lever |
| Deck Design | 7-gauge 60″ (152.4 cm) TURBO FORCE® w/bull-nose bumper |
| Deck Material | 7 Gauge Steel |
| Deck Size | 60 in / 152 cm |
| Discharge Chute | Rubber |
| Drive System | Unitized Pumps 10cc rev Wheel Motors 10 cir |
| Drive Tires | 20 in. x 10.5 in. – 8 in. (50.8 cm x 26.7 cm – 20.3 cm) |
| Engine | 23.5 hp* Kawasaki FX730V 726 cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.5 hp |
| Forward Ground/Transport Speed | Up to 10.0 mph / 16.0 kph |
| Front Bumper | Reinforced Bull-Nose |
| Fuel Capacity | 10.5 gal. / 39.7 L / 42 Qt. |
| Fuel Type | Gasoline |
| Height of Cut | 1.5 – 5.0 in. / 3.8 – 12.7 cm |
| Hour Meter | Standard |
| Hydraulic Fluid | Premium synthetic |
| Product Type | Stand-On Mowers |
| Product Use | Commercial |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | 9 in / 22.9 cm Diameter Cast Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Weight | 960 lbs / 435.4 kg |
Disclaimer
*23.5 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
